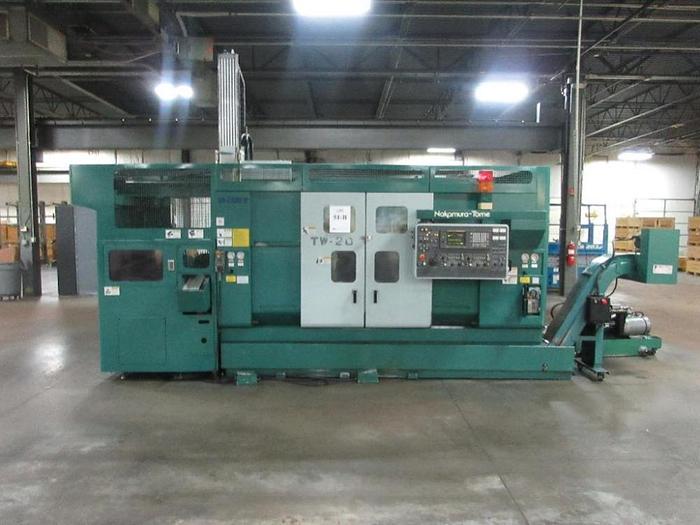

2001 Nakamura Tome TW-20 with Robotic Gantry loader/unloader

Contact us for price

Barrington, IL

orCall 847-450-1099

Description

Fanuc series 18-T control
12-position tool turrets left and right
5,000-rpm maximum spindle speed
6,000-rpm maximum spindle speed on live tooling
GR-210NW robotic gantry loader/unloader
High pressure coolant system
Transformer

Specifications

ManufacturerNakamura Tome
ModelTW-20 with Robotic Gantry loader/unloader
Year2001
ConditionUsed
Stock NumberSIL-8425
Number of spindles2 (Opposed)
Maximum swing over saddle8.66"
Maximum turning diameter6.5"
Maximum turning length7.87"
Hole through spindle, left unit2.44"
Hole through spindle, right unit2.05"
Number of Spindles2 (Opposed)
Maximum Swing Over Saddle8.66"
Maximum Turning Diameter6.5"
Maximum Turning Length7.87"
Hole Through Spindle, Left Unit2.44"
Hole Through Spindle, Right Unit2.05"
