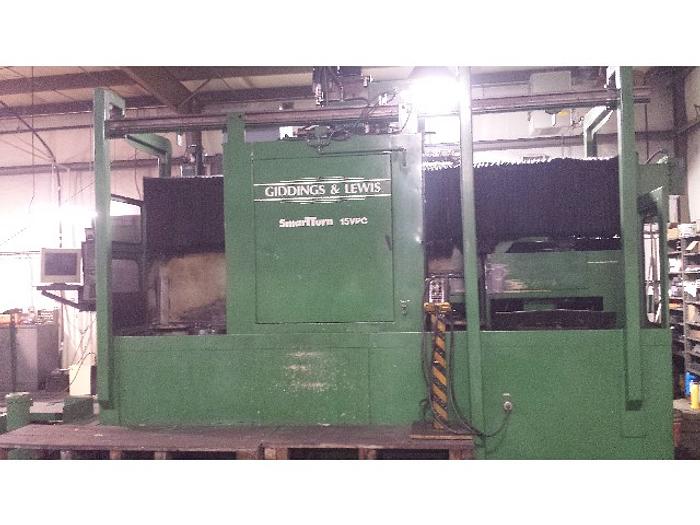

1994 G&L Smart Turn 15 VPC

Contact us for price

Barrington, IL

orCall 847-450-1099

Description

Equipped With:
8-Pos. Automatic Toolchanger
6-Pos. Turret w/Power Indexing for CAT #50
Automatic Tool Changing
Coolant Thru Tool
Flood Coolant System
Way Covers on Cross Rail
Positive Metered Trabon Lube System
Refrigeration Unit for Spindle Lubrication Oil
Magnetic Chip Conveyor w/Integral Coolant
Reservoir
*No Chucks, Machine will Accommodate 15" to 32"
Chucks
*The Draw Bolt & Hyd. Cylinder Go with Machine

Specifications

ManufacturerG&L
ModelSmart Turn 15 VPC
Year1994
ConditionUsed
Stock Number6406
ToolchangerNumber of Positions 8 ATC
Spindle bore5.28"
Spindle noseA2-11
Spindle motor(2) 75 HP
Spindle speeds7 RPM - 3,000 RPM
Flange to floor height44"
Distance between spindles61.02"
Number of turret positions6
Turret horizontal travel, x-axis123.3"
Maximum workpiece diameter(swing)39.4"
Travel of turret past center of spindles4"
Turret vertical travel below saddle, z-axis26"
