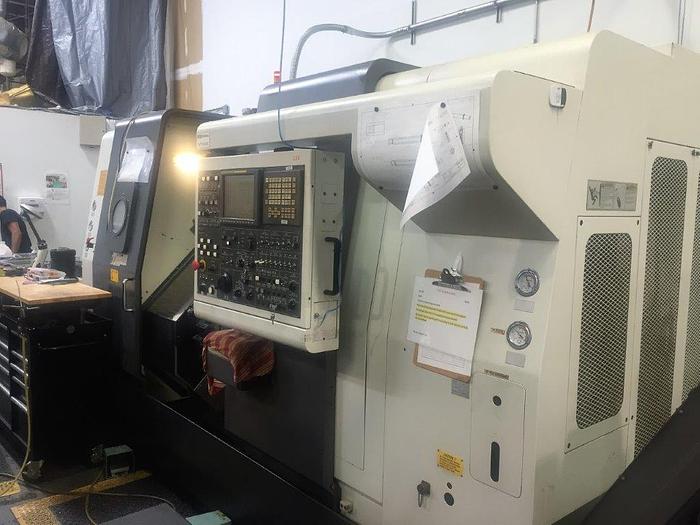

2004 Nakamura Tome WTS-150 (11-AXIS) CNC TURNING/MILLING CENTER

Contact us for price

Barrington, IL

orCall 847-450-1099

Description

FANUC 16iTB CNC CONTROL
COLLET CHUCK ON LEFT SPINDLE
6" 3-JAW HYD. CHUCK ON RIGHT SPINDLE
(2)12 POSITION UPPER TURRETS W/ Y-AXIS (ALL STATIONS LIVE)
(1) 12 POSITION LOWER TURRET W/ LIVE MILLING (ALL STATIONS LIVE)
CHIP CONVEYOR
IEMCA BOSS 545/21 MAGAZINE BAR FEED
HIGH PRESSURE COOLANT
ALL AVAILABLE STATIC AND LIVE TOOL HOLDERS
ALL AVAILABLE MANUALS

Specifications

ManufacturerNakamura Tome
ModelWTS-150 (11-AXIS) CNC TURNING/MILLING CENTER
Year2004
ConditionUsed
Stock NumberSIL-8473
MAX. TURNING DIAMETER12.2"
MAX. TURNING LENGTH10.03"
BAR CAPACITY L/R SPINDLES1.65"/1.25"
CHUCK SIZE6"
SPINDLE SPEED, LEFT SPINDLE6000 RPM
SPINDLE SPEED, RIGHT SPINDLE8000 RPM
DRIVEN TOOL SPEED6000 RPM
UPPER Y-AXIS TRAVEL60mm (+/-30) X 2
LOWER AXES TRAVEL, X/Z8.16"/31.49"
APPROX. WEIGHT22,000 lbs
