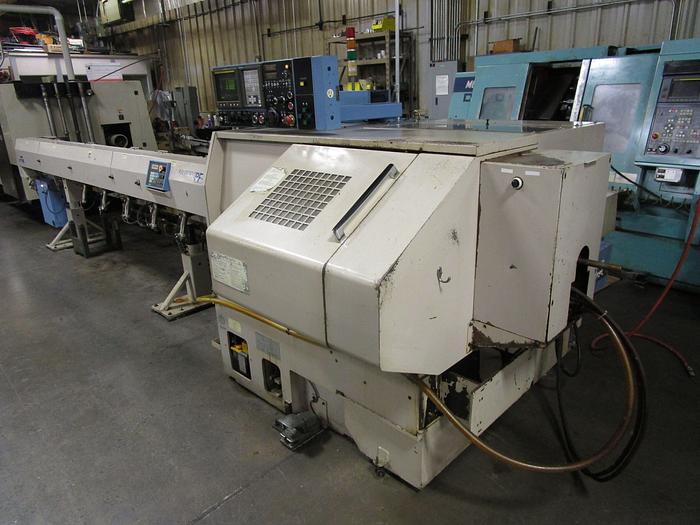

1996 Wasino SM-10B CNC lathe with sub-spindle, Y-axis cross milling spindle, and bar loader

Barrington, IL

orCall 847-450-1099

Description

Alps Tool PF-V3S 12 ft bar loader
8 position turret
Fanuc 21T control
A2-6 main spindle nose
2-1/8 in main spindle bore
11 in max swing
4000 rpm max main and sub spindle
50 mm Y-axis travel
Chip conveyor
Milling spindle takes BIG Daishowa NBC20 collets
4 O.D. turning toolholders (5/8 in square shank)
4 I.D. toolholders (1 in bore)
3 phase, 200 V
18 kVA
ID of drawtube: 45 mm
bar loader max bar capacity: 40 mm round
machine weight: 4900 lb
bar loader weight: 1900 lb

Specifications

ManufacturerWasino
ModelSM-10B CNC lathe with sub-spindle, Y-axis cross milling spindle, and bar loader
Year1996
ConditionUsed
Stock NumberSIL-8608
