Barrington, IL
Full 4th Axis
Fanuc 31i MA CNC Control
300 PSI Coolant thru the Spindle Option
15,000 RPM (option)
120 Tool Positions (option)

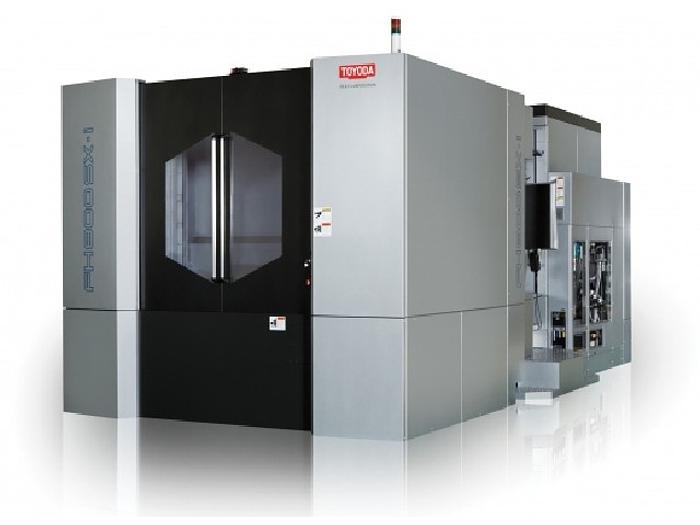

Manufacturer | Toyoda |
Model | FA800 |
Condition | Used |
Spindle taper | 50 |
X-axis travel | 53.1" |
Y-axis travel | 45.2" |
Z-axis travel | 45.2" |
Tool positions | 120 ATC |
Working surface | 31.5" x 31.5" Pallets |
Spindle indexing | Full 4th (360,000 degrees) |
Max load on pallets | 5500 lbs |
Spindle drive motor | 40 HP High Powered Geared Head |
Maximum spindle speed | 15,000 RPM |
