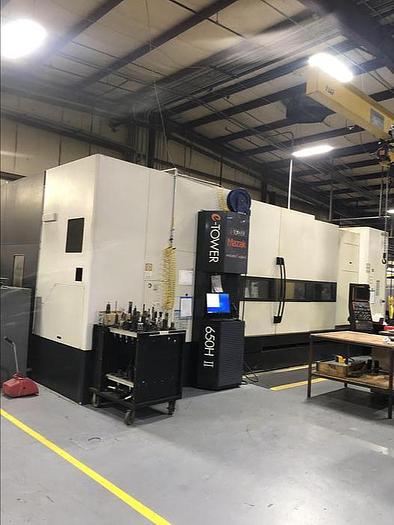

2007 Mazak Integrex 650HSII/4000

2007 Mazak Integrex 650HSII/4000

Barrington, IL

orCall 847-450-1099


Mazatrol Matrix Control Y-Axis Capability Full C-Axis Spindle Rotation Live Milling/Drilling Capability B-Axis Pendulum Head 10.24” Spindle Bore Option 120 Station Tool Changer Programmable Tailstock Tool Eye for use up to 24” Chuck 24” 4 Jaw Chuck Chip Conveyor SMW SLUZ 5.1 Hydraulic Steady Rest(3.35”-13.8” capacity) Long Boring Bar Changer-3 Bar Capacity(4.72”Dx39.37”Lx396.9LBS Max.) High Pressure 213 PSI Coolant w/ prep for 1000 PSI Mazak Monitoring System B w/ Ethernet Laser Measurement System for Tool Length Cat 50 Big Plus w/ C6 Adapter 8 MB Programming Memory Cyber Tower CNC E Machine Performance Package USB Port Interface LAN Port Interface IC Memory Card Interface Card-bus Interface-2 Slots Coolant Thru Mill-head Spindle Orientation Auto Chuck Jaws Open/Close Mill Spindle Synchronous Tapping


ModelIntegrex 650HSII/4000
Stock NumberSIL-8705
Chuck Size24"
Max. Swing36.2"
Max. Cutting Length160"
B-Axis Total Movement/Increment240 Deg./0.0001 Deg
Main & Sub-Spindle Nose/BoreA2-15/10.24”
Main & Sub-Spindle Speeds-2 Ranges35-1,600 RPM
Main & Sub-Spindle Motor 30min/Cont60HP/50HP
Main & Sub-Spindle Indexing0.0001 Deg
Main Spindle Motor/Speed50 HP/10,000 RPM
Rotary Spindle TaperBig Plus CAT #50
Number of Tool Positions120 ATC
Machine Dimensions368”x155”x155”
Machine Weight77,200 lbs
