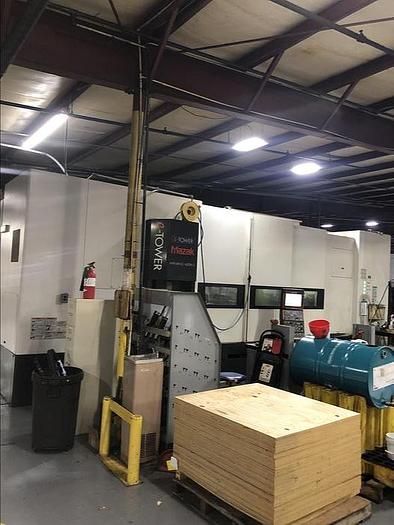

2008 Mazak Integrex 650HSII/4000

Barrington, IL

orCall 847-450-1099

Description

Mazatrol Matrix Control

Y-Axis Capability

Full C-Axis Spindle Rotation

Live Milling/Drilling Capability

B-Axis Pendulum Head

10.24” Spindle Bore Option

120 Station Tool Changer

Programmable Tailstock

Tool Eye for use up to 24” Chuck

24” 4 Jaw Chuck

Chip Conveyor

SMW SLUZ 5.1 Hydraulic Steady Rest(3.35”-13.8” capacity)

Long Boring Bar Changer-3 Bar Capacity(4.72”Dx39.37”Lx396.9LBS Max.)

High Pressure 213 PSI Coolant w/ prep for 1000 PSI

Mazak Monitoring System B w/ Ethernet

Laser Measurement System for Tool Length

Cat 50 Big Plus w/ C6 Adapter

8 MB Programming Memory

Cyber Tower CNC

E Machine Performance Package

USB Port Interface

LAN Port Interface

IC Memory Card Interface

Card-bus Interface-2 Slots

Coolant Thru Mill-head

Spindle Orientation

Auto Chuck Jaws Open/Close

Mill Spindle Synchronous Tapping

Specifications

ManufacturerMazak
ModelIntegrex 650HSII/4000
Year2008
ConditionUsed
Stock NumberSIL-8706
Chuck Size24"
Max. Swing36.2"
Max. Cutting Length160"
B-Axis Total Movement/Increment240 Deg./0.0001 Deg
Main & Sub-Spindle Nose/BoreA2-15/10.24”
Main & Sub-Spindle Speeds-2 Ranges35-1,600 RPM
Main & Sub-Spindle Motor 30min/Cont60HP/50HP
Main & Sub-Spindle Indexing0.0001 Deg
Main Spindle Motor/Speed50 HP/10,000 RPM
Rotary Spindle TaperBig Plus CAT #50
Number of Tool Positions120 ATC
Machine Dimensions368”x155”x155”
Machine Weight77,200 lbs
