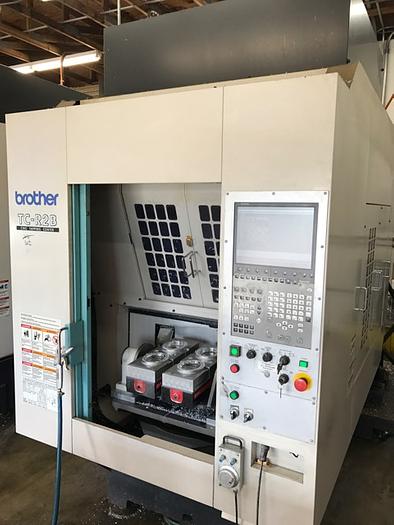

2011 Brother TC-R2B with 4th Axis Rotary Tables

Barrington, IL

orCall 847-450-1099

Description

Brother CNC-B500 Control G-Code & Conversational
-BT-30 Taper
-13.5/8.9 HP Main Spindle Motor
Travel: 16.6” x 12.6” x 12.0” (Table: 23.6” x 11.8”)
2 Pallet Quick Table (2.8 Second Pallet Change Time)
two (2) 4th-Axis Rotary Index Tables with interface:
Yukiwa JNC170L-BQT1B ($28,000 New Price)
two (2) Side Spindles:
Yukiwa SS-135, trunnion xtures, sub plates ($16,000 New Price)
Spindle Taper Air Blast
Complete Covers & Safety Door Interlock System
150 L Flood Coolant with Chip Shower System

Specifications

ManufacturerBrother
ModelTC-R2B with 4th Axis Rotary Tables
Year2011
ConditionUsed
Stock NumberSIL-8368
Table Size23.6” x 11.8”
Table size23.4" x 15.7"
Spindle speed10,000 RPM
X-Axis travel16.6"
Spindle taper#30
Y-Axis travel12.6"
X-axis travel19.7"
Z-Axis travel12"
Y-axis travel15.7"
Spindle TaperBT-30
Spindle Speed10,000 RPM
Main Spindle Motor13.5/8.9 HP
Z-axis travel11.8"
Rapid traverse rate1969 IPM Rapids
Main spindle motor13.5/8.9 HP
Maximum spindle speed10,000 Rpm
Number of tool stations14 Positions
Tool change time (chip to chip)1.4 Seconds
