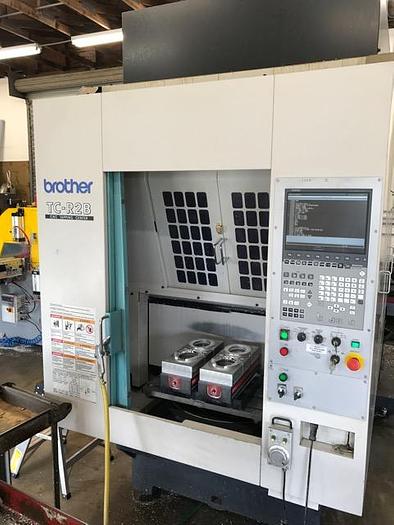

2011 Brother TC-R2B

Contact us for price

Barrington, IL

orCall 847-450-1099

Description

Brother CNC-B00 Control G-Code & Conversational
Chip Conveyor (Hinge Belt Side Discharge with Tank & Interface)
Ceiling Cover (with Amano Mist Collector)
Work Light Kit (1 Light) With Brackets
Shower Gun (operator chip ushing)
Manual Pulse Generator
Blum Z-NANO with Interface
(Plunger type, table mount, tool length & tool breakage)
-4 Chick Vises(5QL-1540-AL)
-Amano Mist Collector
150 L Flood Coolant with Chip Shower System

Specifications

ManufacturerBrother
ModelTC-R2B
Year2011
ConditionUsed
Stock NumberSIL-8368
Table Size23.6” x 11.8”
Table size23.4" x 15.7"
Spindle speed10,000 RPM
X-Axis travel16.6"
Spindle taper#30
Y-Axis travel12.6"
Z-Axis travel12"
X-axis travel19.7"
Y-axis travel15.7"
Spindle Speed10,000 RPM
Spindle TaperBT-30
Z-axis travel11.8"
Main Spindle Motor13.5/8.9 HP
Rapid traverse rate1969 IPM Rapids
Main spindle motor13.5/8.9 HP
Number of tool stations14 Positions
Maximum spindle speed10,000 Rpm
Tool change time (chip to chip)1.4 Seconds
